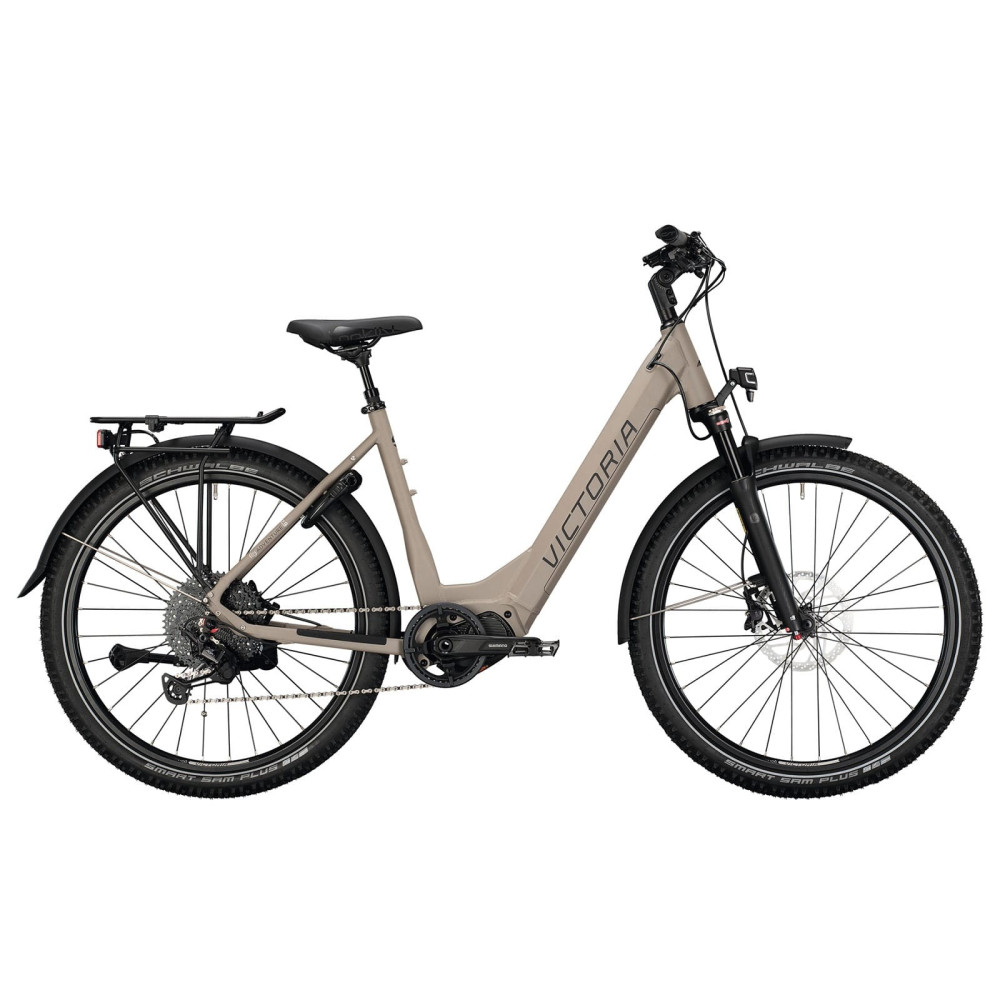

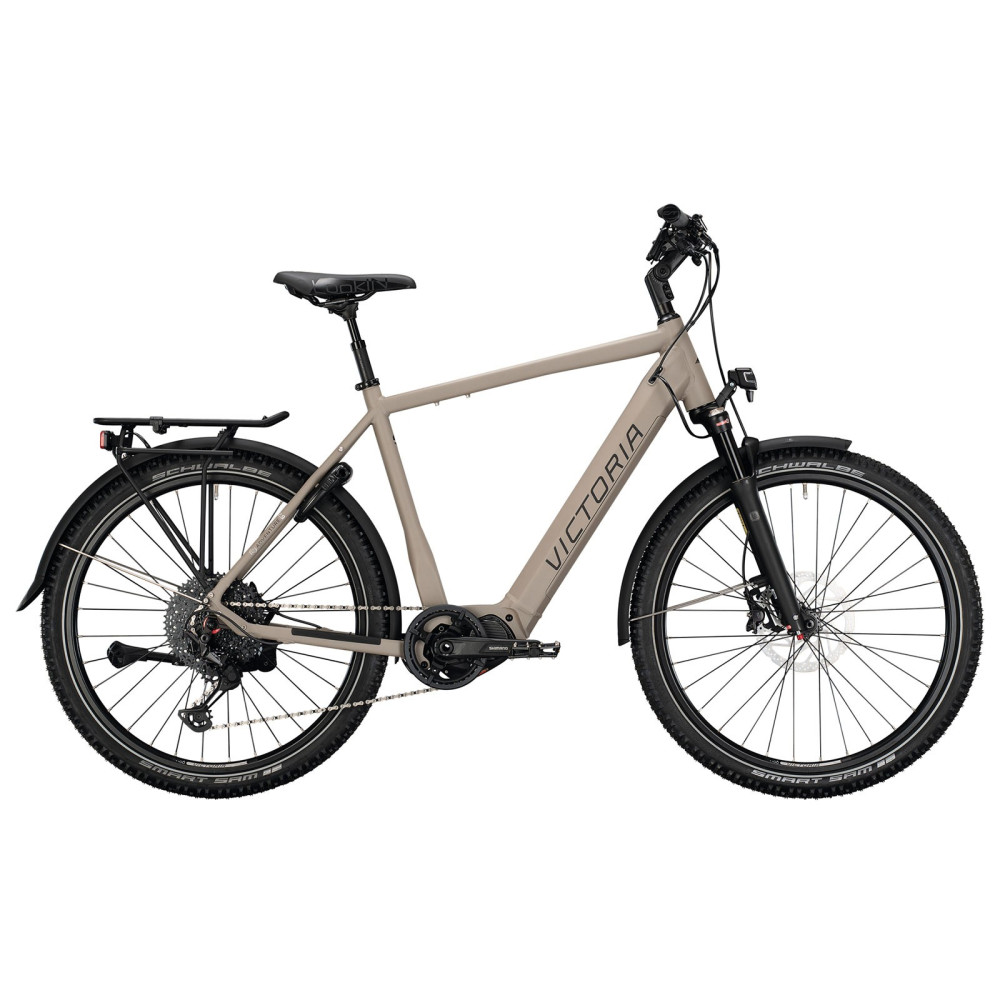

| Cadre | | Cadre | Full-Integrated-Steps-Cadre Aluminium 6061 | | Forme de cadre | Haut | Ouvert | | Cadre hauteur | 45 cm | 50 cm | 55 cm | 60 cm | | Forme de cadre/hauteur | Haut/50 cm | Haut/55 cm | Haut/60 cm | Ouvert/45 cm | Ouvert/50 cm | Ouvert/55 cm | | Fourche | SUNTOUR SF18-MOBIE25 LOR Coil AH2, einstellbar, Lockout, 75mm,Disc, Tapered, QR15 | | Couleurs | desert grey matt / anthracite | | Poids max | 140 kg |
|
|---|
| Système moteur | | Système moteur | SHIMANO | | Type de moteur | Central | | Moteur | SHIMANO Central EP8, 250 W Nenn-Dauerleistung | | Energy content | SHIMANO Lithium-Ion, 36 V, 17,5 Ah, 630 Wh | | Batterie | 630 Wh | | Ecran | SHIMANO SC-E6100 LCD, Bluetooth, Remote Control, Walk assist |
|
|---|
| Poste de pilotage | | Guidon | ERGOTEC Low Riser Bar, 720 mm, Ø 31,8 mm, schwarz | | Stem | ERGOTEC Sepia 50, Ø31,8 mm, verstellbar, schwarz | | Handlebar grips | CONTEC Tour Wing | | Saddle | SELLE ROYAL ESSENZA Italy, Moderate Female | SELLE ROYAL ESSENZA Italy, Moderate Male | | Seat Post | ERGOTEC Patent SP10, gefedert, Ø 27,2 mm, Alu |
|
|---|
| Freins | | Freins | SHIMANO BR-MT420/410 | | Freins lever | SHIMANO BR-MT8100 |
|
|---|
| Roues | | Front-wheel hub | SHIMANO HB-M8010, 32 L., QR 15, Disc, Center Lock | | Rear-wheel hub | SHIMANO FH-MT401, 32 L., QR, Disc, Center-Lock | | Wheel rims | Hohlkammer X-17 DISC, Alu | | Tyres | SCHWALBE Smart Sam Plus, 57-584, Reflex | | Tire size | 27.5 Zoll/inch | | Spokes | 2,0 mm, Niro, black |
|
|---|
| Vitesses | | producer Leviers vitesses | SHIMANO | | Vitesses | Kettenschaltung | | Vitesses | 12 | | Leviers vitesses | 1×12-Gang SHIMANO Deore XT | | Gear shift | SHIMANO Deore XT SL-M8100 | | Dérailleur | SHIMANO XT RD-M8100, 12-fach | | Chaine ou courroie | KMC X12E | | Sprocket | SUNRACE CSMZ8 11-51 Z. black |
|
|---|
| Eclairages | | Eclairage avant | CONTEC Dlux 120 E+ 120 Lux | | Eclairage arrière | CONTEC TL-335 E-Stop, mit Stoplicht |
|
|---|
| Extras | | Rack | MIK-ALU-GEPÄCKTRÄGER TA7652A MIK-System | | Chainguard | HESLING VELO, Steps, schwarz matt | | Pedals | UNION SP-828, Alu, Antislip | | Locks | CONTEC Powerloc M AZ | | Mudguards | CURANA Apollo, 65mm, schwarz matt, Spoiler | | Kick stand | URSUS King2, für Victoria Hinterbau, 40 mm, verstellbar |
|
|---|
