Couleur du cadre • dynamic red metallic*; lunar grey metallic*; pure white*
Fourche suspendue • Suntour Aion, Air, tapered, 100mm; Suntour XCR32 27,5", Air, tapered, black*
Jeu de direction • Acros IntegrationX, block lock
Tige de selle • Cane Creek New Thudbuster ST
Collier de selle • Kalloy SC-201, 40,0 mm
Pneus • Schwalbe Super Moto-X 62-584 Reflex; Schwalbe Big Ben Plus 55-559 Reflex*; Schwalbe Johnny Watts 60-584*; Schwalbe Smart Sam 57-559*; Schwalbe Smart Sam Plus 57-559 Reflex*
Chambres • Schwalbe AV21; Schwalbe AV13*
Jantes • Rodi Tryp35 27,5"; Alex MD30 26"*
Moyeu avant • Novatec Disc 32H
Moyeu arrière • Enviolo 380, 36H
Batterie • Bosch PowerPack 500 Performance, 36 V, 13,4 Ah/500Wh*; Bosch PowerTube 500 Horizontal, 36 V, 13,4 Ah/500Wh*; Bosch PowerTube 625 Horizontal, 36 V, 13,4 Ah/625Wh*
Moteur • Performance Line CX (Gen4)
Display • Bosch Intuvia; Bosch Nyon*; Bosch Kiox*; Bosch SmartphoneHub*
Pédalier • FSA/Riese & Müller, 170 mm
Plateau • 55T, for Gates drive belt CDX
Protection chaine • Riemenschutzring
Chaîne • Gates drive belt CDX
Pignon • 24T, for Gates drive belt CDX
Selle • Selle Royal New Lookin Evo R&M; Selle Royal Nuvola*
Pédales • VP-183; VP-538*; VP-658, oversized spindle *
Manettes • Enviolo grip shift, continuous
Cintre • Humpert ergotec Ergo XXL, 31,8 mm; Humpert ergotec Trekking, 31,8 mm, Alu*; Satori R&M Custom Komfort, 25,4 mm, Alu*; Satori R&M Custom, 25,4mm, Alu*

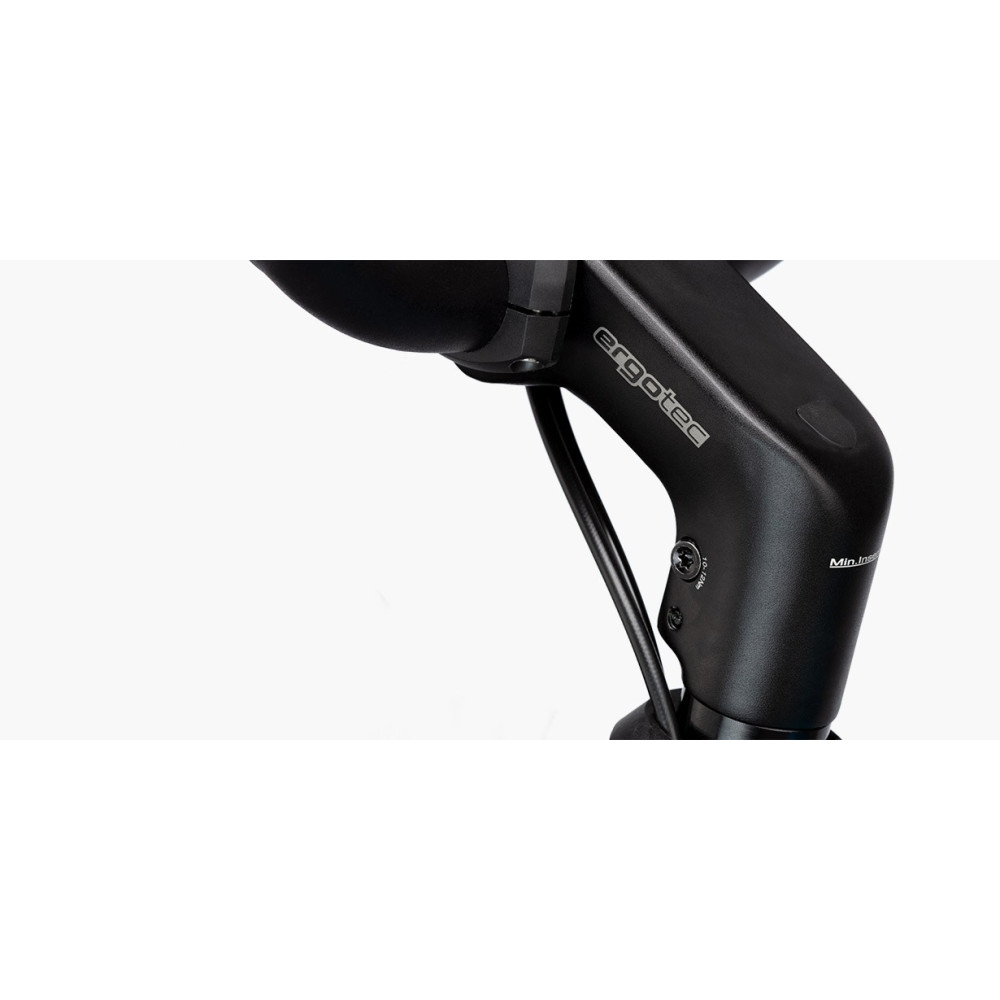

Potence • Humpert ergotec Barracuda Evo, 90 mm, 20°; Satori R&M Custom, cable integration, adjustable angle, Alu*
Poignées • Ergon ergonomic
Freins • Magura MT4, disc brake; Magura MT5, disc brake
Éclairage avant • Supernova mini 2 Pro
Éclairage arrière • Busch & Müller Toplight 2C LED
Leviers de freins • SKS A69R; SKS A65R*
Porte-bagages • Riese & Müller, MIK
Béquille • Ursus R78 King 2 Kickstand
RX Hardware • RX Chip (für RX Services)*
Taille du cadre [cm] • 43 cm (26")*; 47 cm (27,5")*; 51 cm (27,5")*; 56 cm (27,5")*
